We are one of the leading manufacturers of FRP cooling towers that are compact, space saving and has three pass eliminator that limits the drift losses. It has adjustable pitch fan for individual duty condition and harmonised spray nozzles for uniform water distribution.

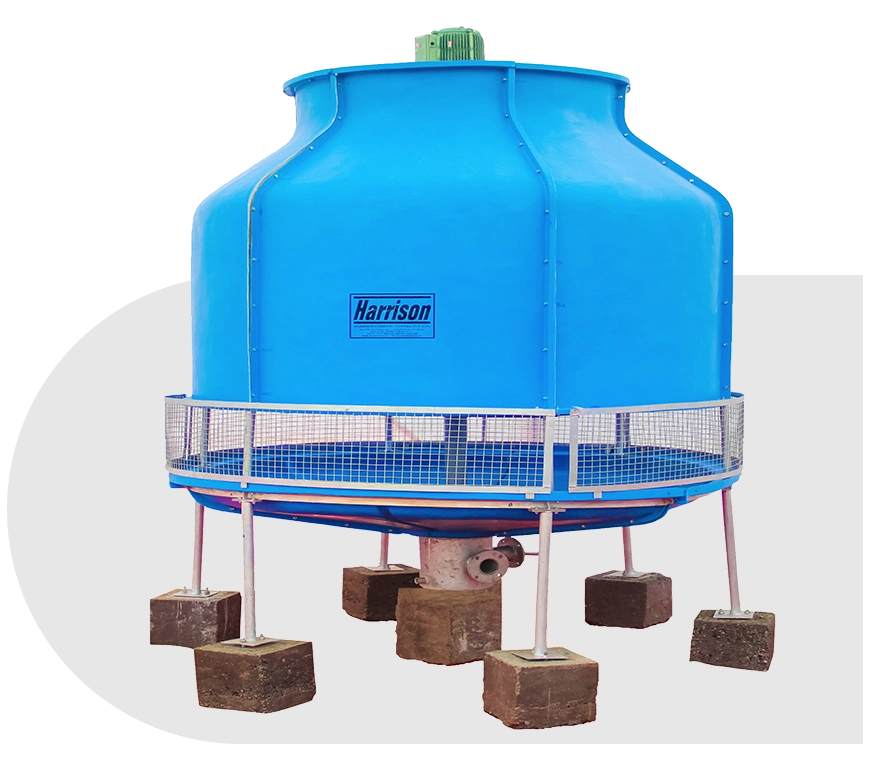

Structure & Components of FRP Round Cooling Tower

Cast Aluminium Fan

These are gravity / die cast fans for displacing high volume of air while being light in weight. Made from LM- 6 grade Aluminium ingots

FRP Assembly Fan

Manufactured from industry standard Fibreglass Reinforced Plastic. Blades are hollow and ultra light, specially suited for large Cooling Towers to maintain Precise cooling range

PVC Fills

The widely accepted heat transfer medium. These ultra violet stabilised and rigid PVC Fills increases effective heat transfer area for optimum cooling

Cooling Tower Motor

These are high Electrical Efficiency motors for driving the fan. The totally enclosed surface cooled motor with IP- 55 protection can be installed in the open without any cover for the motor.

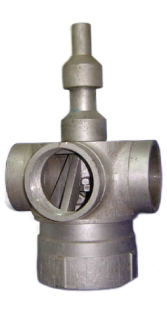

Rotary Spinkler

This rotating sprinkler distributes the incoming water evenly over the entire fill area. It rotates at a speed of 12 to 16 RPM.

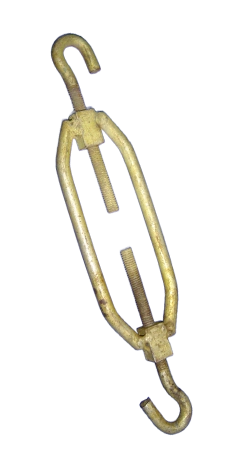

Turnbuckles

This is used in the round cooling tower to keep the sprinkler arm pipes in taut horizontal position above the PVC Fills.



Click here to view complete Structural Diagram Of FRP Square Cooling Tower

Data for optimal selection (to be provided by user)

Rate of Water Circulation (LPM)
Water Inlet Temperature (°C)
Water Outlet Temperature (°C)
Ambient wet Bulb temperature (°C)

Also Information in brief site conditions and Water Quality


Features & applications of FRP Square Cooling Tower

Salient features:

We are specialized in manufacturing precision engineered FRP cooling towers that offer the following features:

  • Elegantly profiled: Available in three pleasing shades to suit individual taste and environment.
  • Light Weight: Allows roof installation and saves structural and masonry costs.
  • Scientific Design: The bottle shaped round cooling towers whose body is designed for optimum performance eliminating dead pockets and for longer life in adverse climatic conditions.
  • Vertical Induced Draft Counter Flow: Uniform air distribution resulting in heat dissipation.
  • Direct Driven Axial Flow Fan: Aerodynamically designed to achieve high efficiency. Adjustable aluminium blades facilitate large air flow at low static pressure and lower noise level.
  • Honey Comb PVC Fills: Extended contact area. Splits incoming air and water into several streams spread evenly across the cross section of the tower enhancing the rate of heat transfer.
  • Rotary Sprinkler: Sprinkler head made of aluminum alloy fitted with sealed ball bearing to take care of thrust and radial loads.
  • Drift Eliminator: Specially designed multi-blade rotary drift eliminator reduces carry over losses and spray entrainment.
  • Leak Proof FRP Basins: Deep sump basin with additional stiffeners. Avoids spillage and seepage of water. Area around the tower dry at all times.
  • Modular Construction: Easy assembly and dismantling direct access to internal parts and easy maintenance.
  • Corrosion Resistant: Inert to almost all chemical fumes. Reduced maintenance costs.
  • Long Lasting: Useful Life 300º more than conventional towers.
  • Algae Free: Minimal cleaning. Saves chemical treatment costs.
  • Non-deteriorating: Weather proof. Non-ageing. Curtails expenditure on replacement of Parts.
  • Low Mark Up Volume: Lower drift losses hence lower make up water requirement.
  • Scientifically Designed Piping: Inlet / outlet connections conveniently located to simplify plumbing and improved overall appearance. Prompt after Sales Service even after the warranty period.

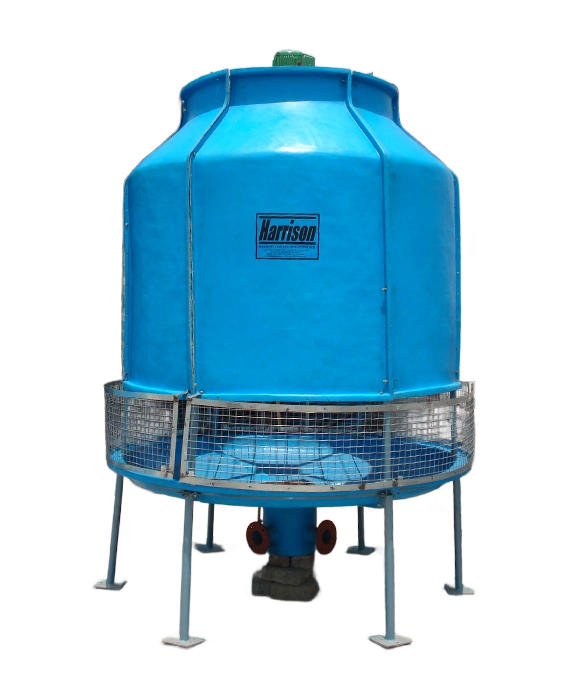

Applications

  • Air conditioning & Refrigeration
  • Industrial chilling Plants
  • Compressors
  • Diesel Gensets Induction Furnaces
  • Chemical Industries
  • Pharmaceutical Plants
  • Vacuum Pumps
Click here to download product brochure & specifications.
